ELECTRICAL HOW TO'S
DOME LIGHT CONVERSION TO OPERATE
WITH DOOR JAM SWITCHES
Their is a difference in wiring the relay depending on
the switch being used so I'm including both schematic depending on the
headlight switch being installed.
BACK TO TOPICS
STOCK HEADLIGHT SWITCH
The original dome light circuit operates in the following
manner:
-
Full Time B+ current is sent to the dome light switch
-
Ground is completed through the dome light housing to the
cab
-
When the switch is moved to the on position the light illuminates

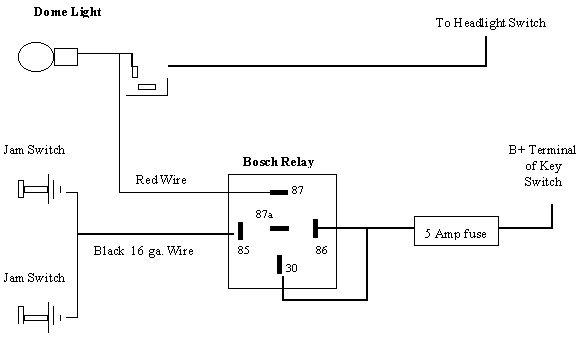

Wishing to have the dome light illuminate when the door is
opened I came up with the following conversion shown below. Basically
all I did was wire in a relay that is triggered by the grounding of the
door jam switch to send current up to the dome light.
The conversion requires the following materials:
-
(1) Bosch relay
-
(2) door jamb switches
-
(1) roll of 16 ga. black wire
-
(1) roll of 12 ga. red wire
-
(1) fuse holder and a 5 amp fuse
-
(1) package of solder less terminals
BACK TO TOP
NEWER STYLE HEADLIGHT SWITCH CONVERSION:
The newer style of Headlight switch operates by sending a
negative signal from the switch up to the dome. This style of operation
will not work with a stock dome light which using only a positive B+ signal
to illuminate the original dome light. The solution to this problem
was to wire in a relay that would send the correct current up to the stock
dome light.
The Dome light will now illuminate when the:
-
Headlight switch is rotated fully counter clockwise dome
light switch
-
Door is opened
-
When the dome light switch is moved to the on position
The conversion requires the following materials:
-
(1) Bosch relay
-
(1) New Style Headlight Switch
-
(2) door jamb switches
-
(1) roll of 16 ga. black wire
-
(1) roll of 12 ga. red wire
-
(1) fuse holder and a 5 amp fuse
(1) package of solder less terminals
